AutoBase PLC  AIC-PL17 Series
The AIC-PL17 series of programmable logic controllers, which use a cost-effective, high-performance device to control points in a stable manner, are simple to structure and easy to install and maintain. Based on our unique communication know-how accumulated over 20 years in the field of automatic control, it is developed with outstanding technology of AUTOBASE research institute, and it is stable, controllable and highly reliable. Depending on the situation, you can choose from four models: AIC-PL17-C / AIC-PL17-D / AIC-PL17-E / AIC-PL17-F.

*Reference Document    *AIC Manual

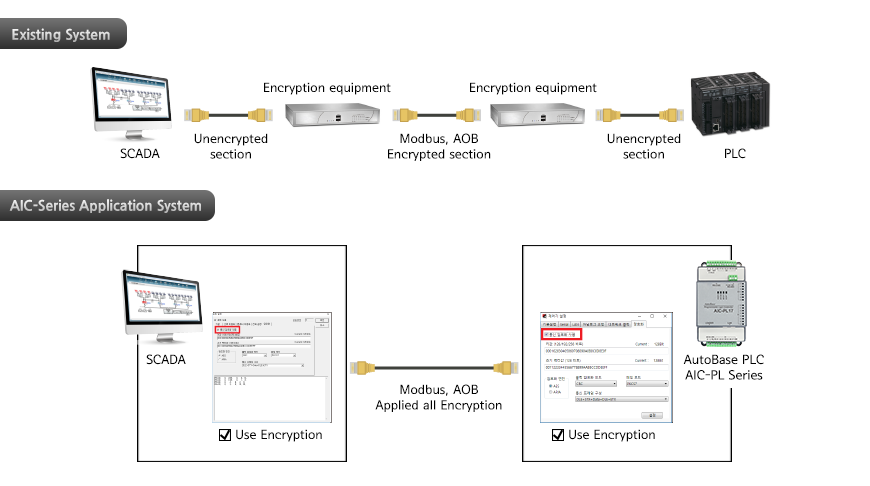

Ensure secure communication with perfect encryption
The built in AES, ARIA encryption engine ensure secure communication. It provides complete encryption function by checking the use of communication encryption without additional installation of encryption equipment, and it is more secure structure because there is unencrypted section.
encryption

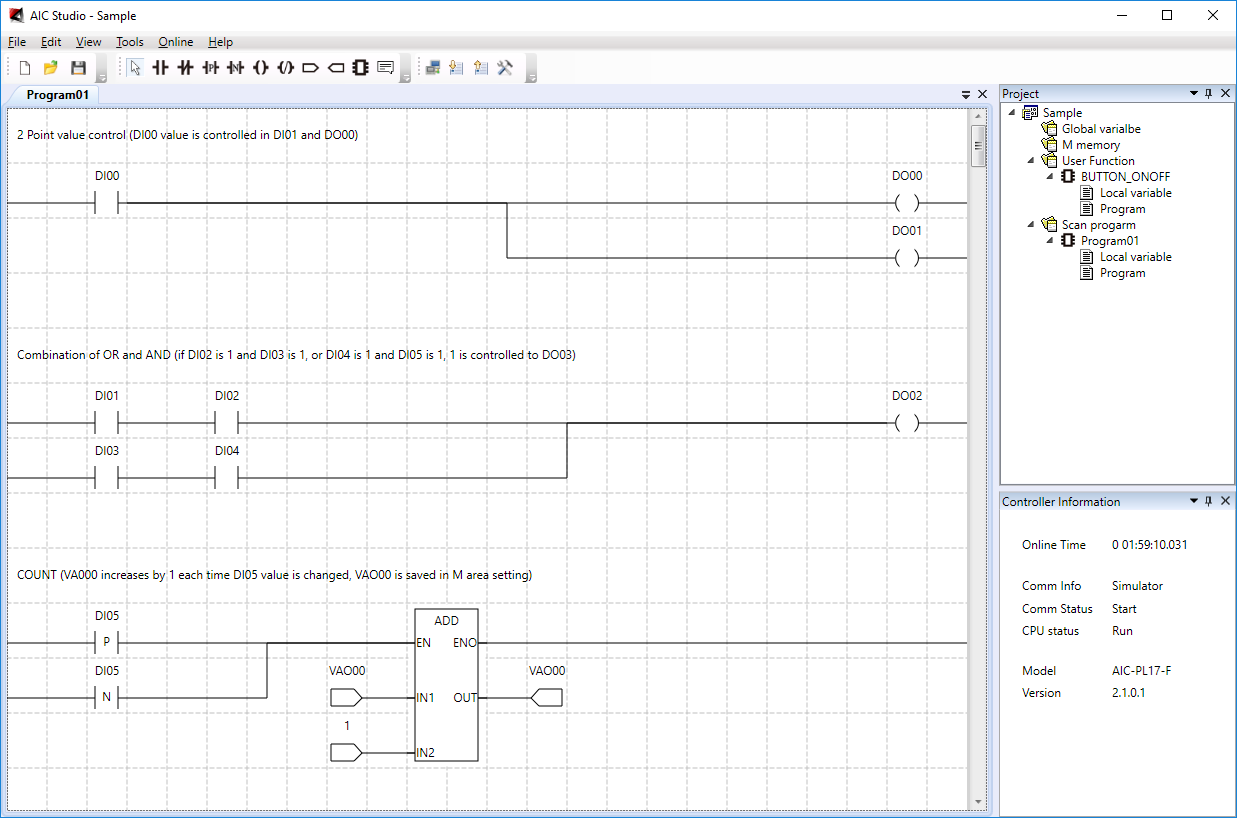

Ladder control logic tool and simulator is provided
User can create and operate the program by using the basic ladder control logic tool. Users can verify the program created without AIC-PL Series. (Same operation simulator is provided)

AIC_Studio
Modbus TCP and Serial communication
It is easy to connect with SCADA, autobase Touch, PLC with built-in Modbus TCP and Serial communication. Communication is possible only by connecting communication cable (automatic station recognition), RS-232C, RS-485, LAN and various other methods provide external data interface.
High Reliability
Reliability test standards such as Surge 3kV, EFT / B 3kV, impulse Noise 3kV, and other vibration and temperature standards are in accordance with the PLC standard.
Customized product manufacturing
Since all AutoBase Programmable Logic Controllers are developed in Korea, We can manufacture / supply them in the form you want. All manufacturing processes are carried out domestically, making the products more reliable and accurate, quick after-sales service even in unexpected situations.
Feature Notice AIC-PL17-C AIC-PL17-D AIC-PL17-E AIC-PL17-F
CPU 32Bit-ARM
Cortex-M4 120MHz
Flash 512Kbytes
SRAM 128Kbytes
DI 0~7 8 Digital Input DC 12~24V/4mA
DO 0~7 7 Digital Output (Relay) DC 10~24V/2A
AC 220V/2A
AI 0~1 2 Analog Input 4~20mA
LOADER COM TX, RX, GND
*RS-232C COM
(RS-232C or RS-485)
TX, RX, GND
*RS-485 TX+, TX-, FG
LAN 10/100MB Ethernet RJ45
